At Goebel, we specialize in delivering a full spectrum of advanced fabrication services, including precision laser cutting, intricate miter folding, high-accuracy machining, expert welding, and premium finishing. Our highly skilled metal fabrication team combines craftsmanship with the latest technologies, innovations, and design features to bring your vision to life with unparalleled quality. When you partner with Goebel, you can trust in our commitment to excellence, forward-thinking solutions, and relentless attention to detail — ensuring your project meets the highest standards from concept to completion.
Sheet Metal Laser
Precision cutting and laser engraving providing the most precise metal cuts in the industry. Our equipment has assisted loading of sheets up to 5’ X 10’.
V-Grooving Miterfold
Our V-Grooving machine can handle 12’ long sheet metal, providing precision-formed mitering. This process provides a crisp, clean outside corner not found in traditional brake operations.

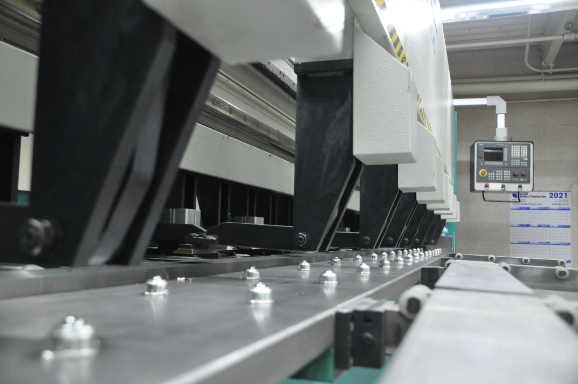

Machining, Shearing & Forming
Goebel provides many machining services in our metal department on traditional and CNC machines. Our shear has a 12’ shearing capacity. We have a linear brake that can form metal to suit your needs and a library of tooling for most applications.

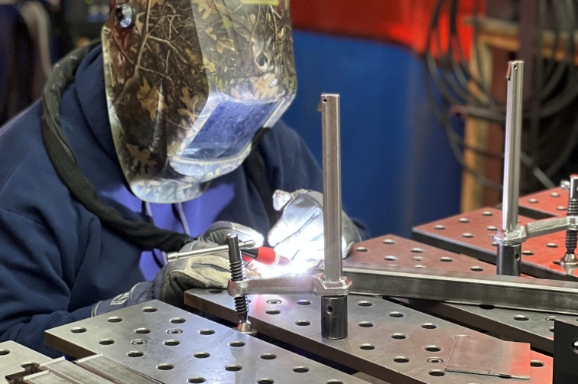

Welding
Our team performs in advanced welding booths equipped with MIG (wire feed), TIG and laser welding processes. Precision welding tables and tooling are ergonomically set up for the craftsperson to perform at the highest level.
Finishing
Using a combination of mechanical and hand finishing techniques, the team achieves basic grinds to mirror polished finishes. Whether powdercoat, electro-plating, wet-film or chemical finishing, we tailor the solution to meet your needs.
2025 Goebel Metal Fabrication Capabilities
Metal Cutting:
· Trumpf TruLaser 1030 SE, Fiber Laser – 5’ x 10’ Sheets.
· Mild Steel – 3/4″
· Stainless Steel – 1/2″
· Aluminum – 1/2″
· Copper – 1/4″
· Brass – 1/4″
· Accushear 625010 – 1/4” x 120” Mild Steel, 11ga. x 120” Stainless Steel, 3/8” Aluminum.
· Dake Cold saw – Up to 3” square tube.
· Ellis Band Saw – 4” x 8” Rectangular Tube, 11” Flats, 8” Pipe.
· Pak 50 Plasma Cutter (Manual) – ½” Mild Steel.
Forming:
· Accupress Edge 412012 Press Brake – 120 Ton, 12’ ft.
· Magnetic Sheet Metal Forming – 12’FT
· 4’ Box and Pan Brake.
· Di-Arco Manual Bender – Flat, Rod, & Tube.
· Angle/Tube Roller 2” capacity
· Plate Roller 5’ x 10ga capacity
· 24” Slip Roll – 16ga. x 24”.
Machining:
· (2) ATrump Vertical CNC Mills – 14” x 30” Bed Travel.
· Manual Lathe – 6” x 32”
· (2) Drill Presses
· Hydrapower V-Grooving Machine – 12’ capacity
Welding:
· (1) IPG LightWELD Handheld Laser Welder
· (2) Miller Dynasty 350 Tigrunner – Up to 5/8” Steel, Stainless Steel, & Aluminum.
· (1) Miller Dynasty 210 Tigrunner – Up to 1/4” Steel, Stainless Steel, & Aluminum
· (1) Miller Matic 252 – Wire feed welder up to 1/2” Steel & Stainless Steel, and 3/8″ Aluminum.
· (1) CD Stud Welder
· (6) BuildPro Welding Tables
Finishing:
· Timesaver Straight –Line Sander – 24” Belt
· (2) 7hp Baldor Pedestal Buffers – Mirror Polishing Stainless Steel, Brass, & Aluminum.
· 3M / Dynabrade Trizact Finishing System – Finish from 120grit to Mirror Finish.
· Walter/Surfox Weld Cleaner – Removes color (weld burn) from TIG welds.
· Parts Tumbler – Deburring/Finishing
· Brass antiquing Line (48” x 144”)
Material Capabilities:
· 303, 304,316, & 430 Stainless Steel
· 5052 & 6061 Aluminum
· Cold Rolled Steel (CRS)
· Hot Rolled Steel (HRS)
· Hot Rolled, Pickled & Oiled (HRPO)
· Galvanized Steel
· Brass (260 Sheets, Muntz Brass, 360 Bars)
· Copper
Finish Capabilities:
· #8 Mirror Polished & Super #8 Mirror Polished Stainless Steel (1 or 2 sided Sheets available)
· #6 Brushed Stainless Steel
· #4 Satin Stainless Steel
· Random Orbital on Stainless Steel
· 2B (Mill Finish) Stainless Steel
· Powder Coating
· Painting
· Cerakote
· Patina Finishes (Brass, Mild Steel, & Stainless Steel)
